Brand Name : iBoard/ OEM
Model Number : DW-10
Certification : CE, RoHS
Place of Origin : China
MOQ : 10 pcs
Price : USD13-USD20/ piece
Payment Terms : T/T
Supply Ability : 5000 pieces per Month
Delivery Time : 30-40 days
Packaging Details : Carton Package
Adjustable range : 60-95 cm
Max load : 18 kg
Rotation : 360°
Material : high quality carbon steel
up and down : ± 70°
left and right Tilt : -70°
Weights : 2.2/2.3kg
Application : for short throw laser projector arm Ceiling Mount

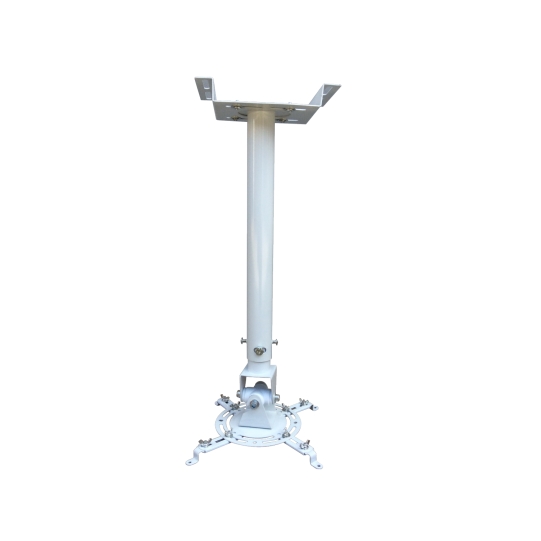

Projector Arm Ceiling mount universal for short throw projector
Adjustable range 60-96cm
Projector mounts Universal
Projector bracket
Specification
1. Head grasp installation hole distance: diagonal 30 cm-41cm.
2. The diameter of the outer tube is 45mm and the diameter of the inner tube is 40mm.
3. The upper and lower plate split design, easy to adjust the two dimensions (max 3cm).
4. The projector lens can be adjusted up and down by ± 70°, and left and right tilt by -70 degrees.
5. The grasping disc is round, the whole can realize 360° rotation.
6. All materials are high quality carbon steel, shot blasting after rust removal electrostatic spray.
7. The load bearing is less than 18 kgs.
8. Color in White.
9. With expansion screws for fixing the concrete ceiling.
10. With M4, M5, M6 and M8 screws for installing projector.
11. The tube can be used to hold the HDMI cable that comes with the projector.
Warranty 2 years.
Lifspan: 8-10 years.
Adjustable mode:

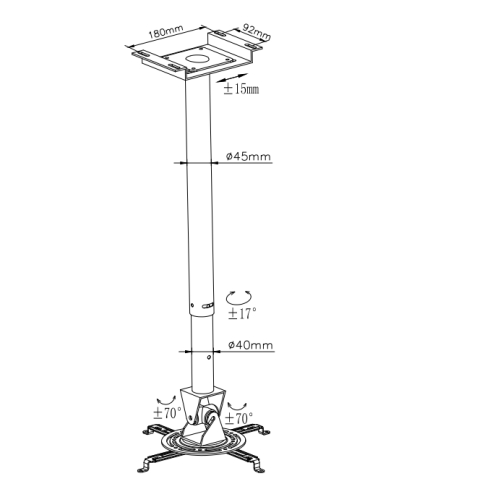

Reference dimension:
For more details, please feel free to check with our sales team: osd019@touch-easy.com
![]() |
Projector Arm Ceiling mount universal for Laser projector Adjustable range 60~95 cm Images |
